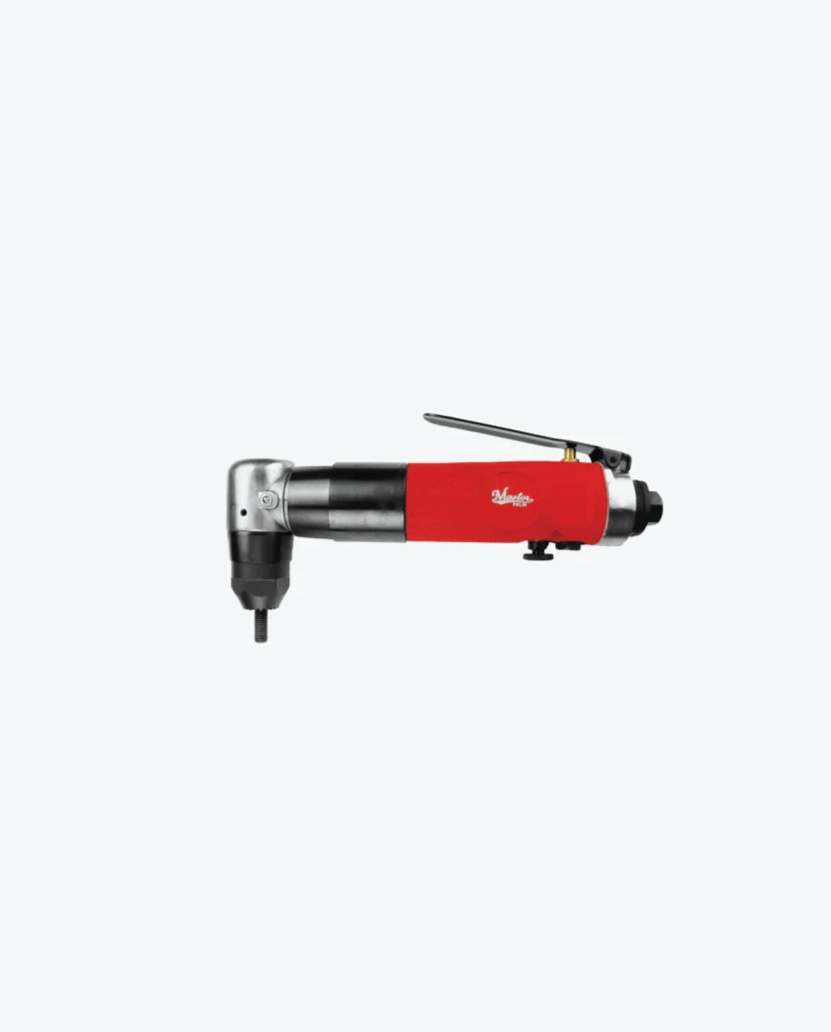

Master Palm m6 Right Angle Rivet Nut Pull Setter Installation Tool, 650 Rpm
right angle nut installation and pull setter tool, m68 size, is reversible simple direction valve trigger design. 650 rpm free speed for industrial use. quickly install rivnut easily., Wholesale, MPT-71710, ISO, CE
1 units available. In Stock. Ship In 3-5 Business Days.
*Each order might take up to 3 business days to process due to shipping preparation.
**If you order more than available stock, we will ship your order in 2 shipments which also required additional 5-10 business days lead time.
***We make and design our own air tools and power tools with patented heat treated components for long hour usage. Master Palm is a registered trademark in the US and EU.
-20%
USD$549.51
USD$683.20
Master Palm® Pneumatic.
Industrial M6 Nut Installation Tool, Threaded Nut Pull Setter - ISO 9001:2015 Certified, CE Compliant
Introduction
Master Palm nut installation tool with 650 rpm free speed provides easy way to install threaded nutserts without extra efforts. The tool delivers pull action to install threaded nuts directly without extra tool.
Right angle nut installation and pull setter tool, M6 size, is reversible with simple direction valve trigger design. 650 RPM free speed for industrial use. Quickly install threaded nutserts
The right angle nut setters use rear exhaust for better performance during operation.
After a period time of usage, users are advised to replace excessive thread wear mandrels with a high quality socket head cap screw.
Metric Size Matching Chart
Industrial grade rivet nut installation tools allow tool users to install threaded nutserts easily without using too much strength or other tools. Just cling onto it and press, the tool will put the threaded nut and set for complete installation. All rivet nut installation tools are ISO 9001:2008 certified with CE bookmarked. Industrial rivet nut installation, the nut pull setter, operates on compressed pneumatic air. Each tool comes with three years limited reppneumatic air warranty. Choice of right angle or / hand grip models or both.
| Metric Coarse | Metric Fine | BSF/BSW | UNC | UNF |
| M6 x 1 | M6 x 0.75 | 1/4" | 1/4-20 | 1/4-28 |
Demonstration Video
| Angle Dimension | |
| angle height | Total Height ( Mandrel Included ) : 3.885" Total Height Without Mandrel: 3.125" Low Height: 1.5 "/38 Mm |
| Basic Information | |
| air pressure | 90 psi/6.21 bar |
| exhaust | rear |
| free speed | 650 rpm |
| horse power | 0.9 hp/0.68kw |
| hose size | 3/8"/9.52 mm |
| noise rating | 81 dba |
