SKU. 71690

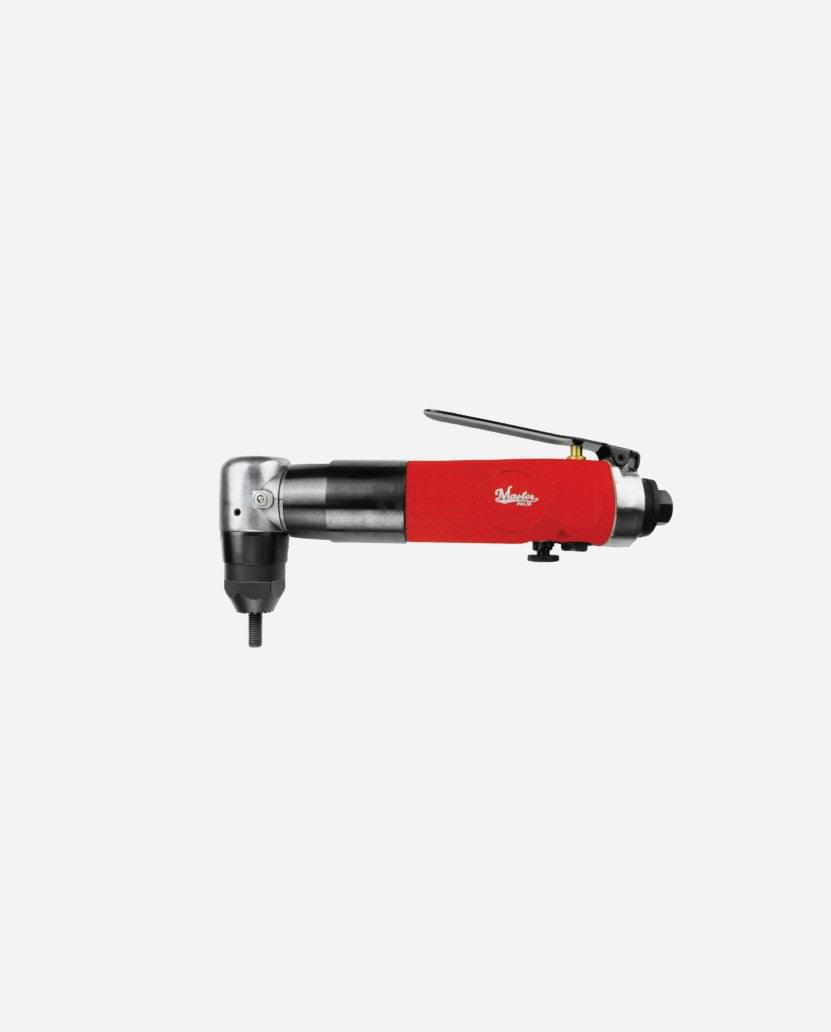

Master Palm® M8 right Angle Rivet Nut Installation Air Tool, 500 Rpm, 90psi - 120 Psi

ISO 9001:2015 Certified. CE Compliant. Industrial M8 Size Right Angle Rivet Nut And Threaded Insert Installation Tool  - ISO 9001:2015 Certified, CE Compliant Introduction Master Palm pneumatic threaded rivet nut installation tool provides an easy way to install rivet nuts and threaded inserts without extra efforts. To install threaded rivet nut and inserts

  • CE Compliant
  • ISO 9001:2015 Certified
  • Industrial Grade
American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa
Regular price $780.00 USD
Regular price $780.00 USD Sale price $780.00 USD
Sale Sold out
Shipping calculated at checkout.

Quantity Based Discount

Can not mix with other discount codes
Min. QTY Unit Price
1 units $780.00 USD/each
2 units $702.00 USD/each
4 units $624.00 USD/each
6 units $585.00 USD/each
8 units $546.00 USD/each

In stock: 1 Available

Flat Rate Shipping Chart/Per Order
We offer flat rate and real time shipping rate from UPS, DHL and USPS Priority Mail. When you choose flat rate shipping, your order will be shipped either via UPS or USPS with signature confirmed and insured. If you are outside of the US, your import tax will be prepaid, aka, you don't have to pay for the import tax except Canada.
View full details

Industrial M8 Size Right Angle Rivet Nut And Threaded Insert Installation Tool  - ISO 9001:2015 Certified, CE Compliant

Introduction

Master Palm pneumatic threaded rivet nut installation tool provides an easy way to install rivet nuts and threaded inserts without extra efforts. To install threaded rivet nut and inserts, initially, the tool delivers a pull action to fasten the rivet nut directly without any other extra tool and strength.

Right angle rivet nut and threaded insert installation tool, M8 size, is reversible with a simple direction valve trigger design. 500 RPM free speed for industrial use. Quickly install the threaded insert.

The right angle nut setters use rear exhaust for better performance during operation.

After a period of time of usage, users are advised to replace excessive thread wear mandrels with a high-quality socket head cap screw.

Metric Size Matching Chart

Industrial grade rivet nut installation tools allow tool users to install threaded inserts easily without using too much strength or other tools. Just cling onto it and press, the tool will pull the threaded nut for a complete fastening installation.  All rivet nut installation tools are ISO 9001:2015 certified with CE compliant standard, used by many quick machinery installations. Industrial pneumatic rivet nut installation, the nut pull setter, operates on compressed air. Each tool comes with three years of limited repair warranty. Choice of a right angle or pistol grip/handgrip models or both.

Metric Coarse Metric Fine BSF/BSW UNC UNF
M8 x 1.25 M8 x 1 5/16" 5/16-18 5/16-24


Demonstration Video


Item No. 71690
Series Nut Installation
Dec. M8 Right Angle Rivet Nut and Threaded Insert Installation Tool
Free Speed 500 rpm
Air Consumption 13.4 cfm
Air Pressure  379.6 l/min
0.39 m3/min
90 lb/inch2(P.S.I)
6.3 kg/cm2
621 Kpa
6.2 Bar
Gross Angle height total height (mandrel included) : 3.885"
total height without mandrel: 3.125"
low height: 1.5 "/38 mm
in.
Overall Length 9.2 in.
Net Weight 2.3 lb
1.1 kg
Noise 81 dB(A)
Air Exhaust Rear
Air Hose Size 3/8 in.
Air Hose Size 9.5 mm
WARRANTY 1.0 YEAR
Power 0.9 HP
0.68 kW
